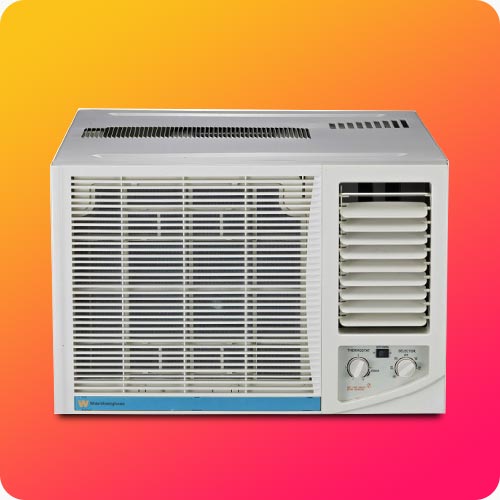

White Westinghouse Window Type Air Conditioner 2 Ton Model: WWWC246WDQ

Perfomance
Cooling Capacity (Btu/h): 20400
Cooling Capacity (W): 5979
T1 Tolerance for Capacity (MP): 5%
Dehumidification (l/hour): 2.5
Applicable Operating Temp (°C): 17-32
Applicable Ambient Temp in cooling (°C): 18-54
Approximately CO area (Sq. M): 27-40
T1 EER (Btu/h)/W: 9.70
T1 EER (W/W): 2.84
High Ambient (T1/T3): T3
T3 Cooling Capacity (Btu/h): 17700
T3 Cooling Capacity (W): 5187
T3 Tolerance for Capacity (MP) (W): 5%
T3 Power Watts (W): 2465
T3 EER (Btu/h)/W: 7.180
T3 Amps (Cooling) (A): 10.70
T1 Tolerance for EER/COP (MP): 0%
T3 Tolerance for EER (MP): 0%

Dimensions (in) / Specifications
Refrigeration Type: R410
Refrigeration Charge (g): 880
Indoor Unit Dimension (W/D/H)(mm): 680x660x428
Indoor Unit Dimension of Package (W/D/H)(mm): 815x746x515
Indoor Unit Carton Type: Double corrugated
Indoor Recommended Stack Height: 4
Stuffing Quantity of Set(20’ /40’ /40’HQ): 84/176/218
Indoor Unit Weight (Kg): 57.6
Indoor Shipping Weight (Kg): 62.1
Annual Energy Consumption(Kw.h/y): 5678.1

Electrical
Volts/Hertz: 220-240V/50Hz
Power Watts (Cooling): 2103
Amps (Cooling) (A): 9.26
Starting Current (A): 39
Rated (Max) Input(W): 2548
Rated (Max) Current(A): 13.1
Compressor Brand: GMCC
Compressor Model: ASG240V1SFT
Compressor Type: ROTARY
Compressor COO: China
Design Pressure(Mpa): 4.8/1.5
Power Cord Gauge Min (mm): 2.5
Power Supplied: indoor
Power Cord Plug: no plug
Power Cord:3*2.5

Features
Controls: Mechanical control
Control Panel Location: front right
Fan Speeds (CO/Fan/Heat): 3/2/0
Indoor Air Volume (M³/Hr): 740/630/550
Indoor Motor RPM: 900/830/770
Air Discharge: right side
Air Direction Control – Horizontal Swin: electric
Air Direction Control – Vertical Swin: manual
Indoor Sound Pressure Level dB (A): 55/53/52
Outdoor Sound Pressure Level dB (A): 63/61/59
Fresh Air / Exhaust Vent / Closed: Fresh Air
Filter Type: PP
Water-proof of Outdoor (IP24): IP24
Gold Fin Condensor: NO
Gold Fin Evaporator: NO(Bluefin)
Indoor Accessories Included: yes

Certifications
Safety Standard:CB
Environment Standard:RML of Elux
G-mark:YES
