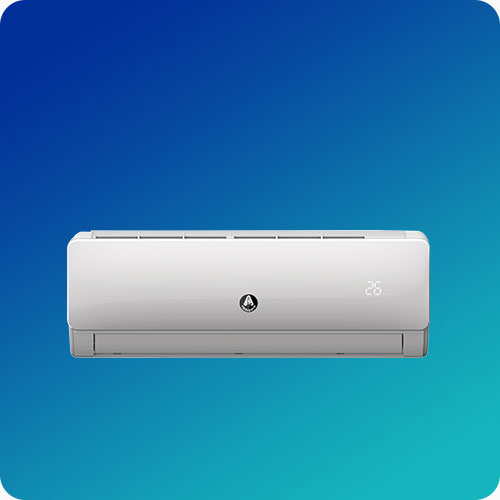

Emelcold 2.5 Ton Split Air Conditioner Piston Model-EMS-2T30

Product Specification
Capacity Class: 30000
Nameplate Parameter
Rated Capacity Cooling / Btu(T3) /: 24500
Rated Capacity Heating / W: /
Rated Capacity Dehumidifying / Kg/h : /
Rated Power Consumption Cooling / kW: 3.15
Rated Power Consumption Heating / W: /
Rated Running Current Cooling / A : 15
Rated Running Current Heating / A : /
Electric heating Power / W: /
Max. Input Power / W: 3800
Max. Input Current / A: 19
EER Cooling Btu/h/W : 7.78
COP Heating / W/W : /
Power Supply Source V/Ph/Hz : 220-240V/50Hz
Refrigerant: R410a
Refrigerant Charged / g : 2050
Max. Discharge Pressure / Mpa : 4.3
Max. Suction Pressure / Mpa : 1.15
Air flow volume m3/h : 1600
Noise Level / dB(A) : 52
Noise Level / dB(A) : 61
indoor Unit Weight (Net) / Kg : 16
Outdoor Unit Weight (Net) / Kg : 71

Indoor Unit Configuration
Evaporator Multi-bend : 3
Evaporator Rows : 2
Net Dimension W * D * H / mm : 1250*360*253
Packing Dimension W * D * H / mm : 1340*445*355
Condensate Drainage Pipe (O.D) : 16.9
Condensate Drainage Pipe (L) : 2000

Outdoor unit configuration
Compressor Model : AW553B 78H
Compressor Model Type : PISTON
Compressor Model Brand : KK
Condenser Rows :
Net Dimension (W * D * H)/ mm : 970*803*37
Packing Dimension (W * D * H)/ mm : 1105*890*495
Container Loading 20/40/40HC / Pcs : 95
