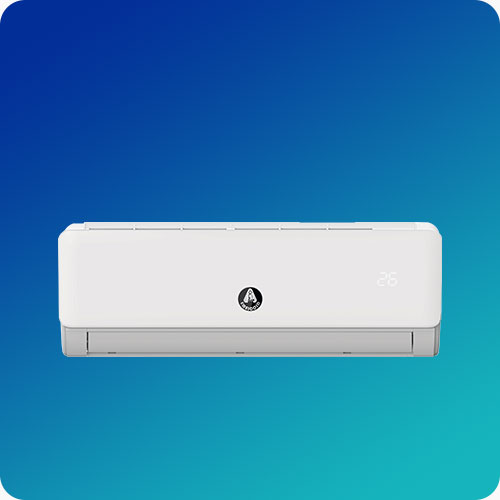

Emelcold 1.5 Ton Split Air Conditioner Rotary Model: EMST18

Product Specification
Capacity Class: 18000
Nameplate Parameter
Rated Capacity Cooling(T3) / BTU/Hr: 15354
Rated Capacity Heating / W: /
Rated Power Consumption Cooling Capacity / W: 1650/1950
Rated Power Consumption Heating Capacity / W: /
Rated Running Current Cooling / A : 7.1/8.3
Rated Running Current Heating / A : /
Electric heating Power / W: /
Max. Input Power / W: 2500
Max. Input Current / A: 12.00
EER Cooling W/W : 3.15/2.36
COP Heating W/W : /
Power Supply Source V/Ph/Hz : 220-240V/50Hz
Refrigerant: R410a
Refrigerant Charged / g : 1100.00
Max. Discharge Pressure / Mpa : 4.15
Max. Suction Pressure / Mpa : 1.15
Air flow volume m3/h : 950.00
Noise Level / dB(A) : 43.00
Noise Level / dB(A) : 52.00
indoor Unit Weight (Net) / Kg : 14.00
Outdoor Unit Weight (Net) / Kg : 38.00

Indoor Unit Configuration
Evaporator Multi-bend : 3.00
Evaporator Rows : 2.00
Net Dimension (W * D * H) / mm : 970*300*198
Packing Dimension (W * D * H) / mm : 1025*385*305

Outdoor Unit Configuration
Connect Pipe Liquid Tube Diameter * Thickness (O.D) : Φ6.35*0.5
Connect Pipe Gas Tube * Thickness (L) : Φ12.7*0.7
Compressor Model: ASL193MV-C7EU
Compressor Model Type : Rotary
Compressor Model Brand : Highly
Condenser Rows : 2.00
Net Dimension (W * D * H)/ mm : 802*535*298
Packing Dimension (W * D * H)/ mm : 920*400*600
Container Loading 20/40/40HC / Pcs : 185.00
